The new generation machine, combining high precision, versatility and
reliability, is designed for complex processing of metal workpieces.
Main functions:
Milling
Boring
Drilling
Threading
It is suitable for processing ferrous and non-ferrous metals. Ensures the execution of several
technological processes in one installation of the workpiece.

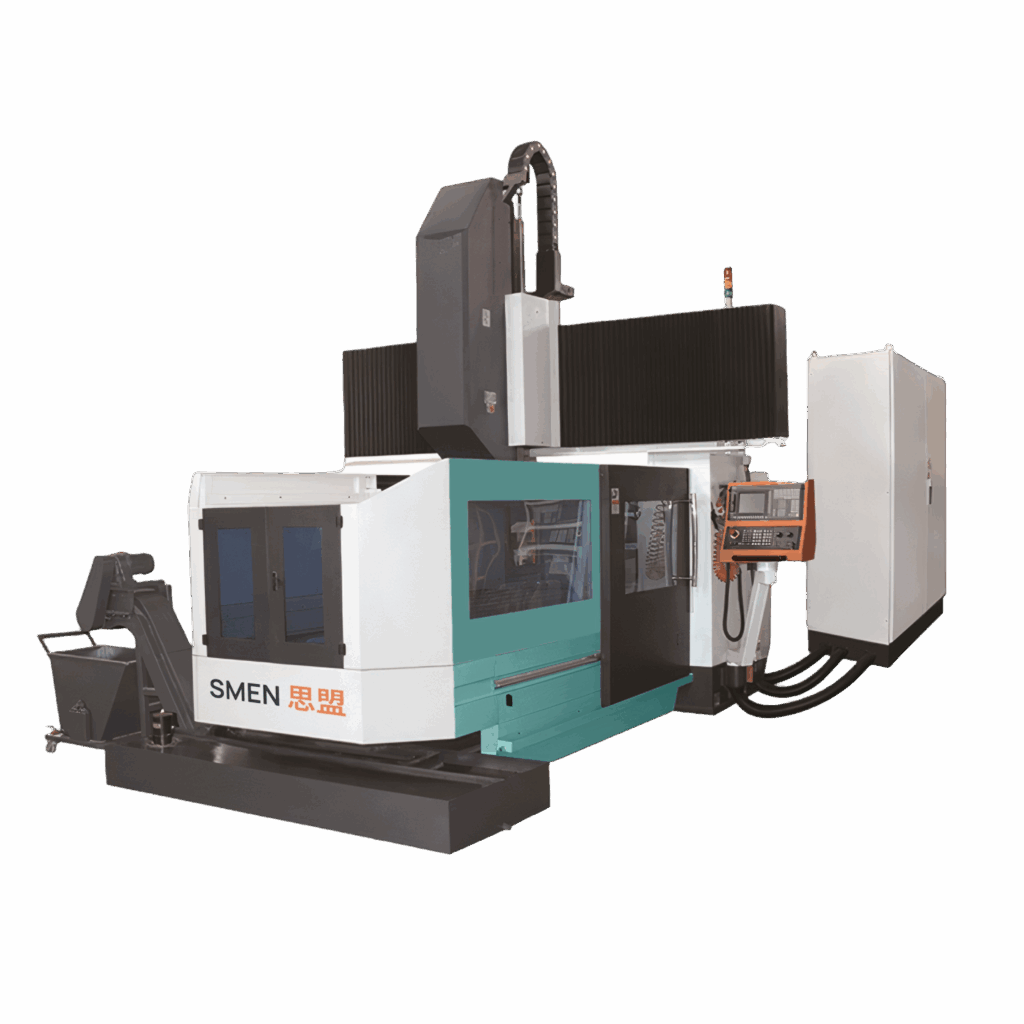

CNC GANTRY MACHINING CENTER XH2314 / XK2314
Table size:1400×2000 mm
Column spacing:1600mm
Max. table load:2.5t
Engine power:22kW
Description
Тех. характеристики
| Model |
XH2314 / XK2314 |
|---|---|
| Table size |
1400 × 2000 mm |
| Max. workpiece weight |
2 , 5 t |
| Distance between columns |
1600 mm |
| Number/width/distance between T-slots |
7–22 × 180 mm |
| Desktop progress |
2100 mm |
| Spindle stroke |
1600 mm |
| Distance from spindle to table |
115–915 mm |
| Spindle rotation speed |
6000 mm/min |
| Feed Rate X/Y/Z (Working Feed) |
5~5000 mm/min |
| Main drive power |
22 кВт |
| Machine weight |
27 t |
| Type |
Portal cnc Machining Centers |
