The new generation machine, combining high precision, versatility and
reliability, is designed for complex processing of metal workpieces.
Main functions:
Milling
Boring
Drilling
Threading
It is suitable for processing ferrous and non-ferrous metals. Ensures the execution of several
technological processes in one installation of the workpiece.

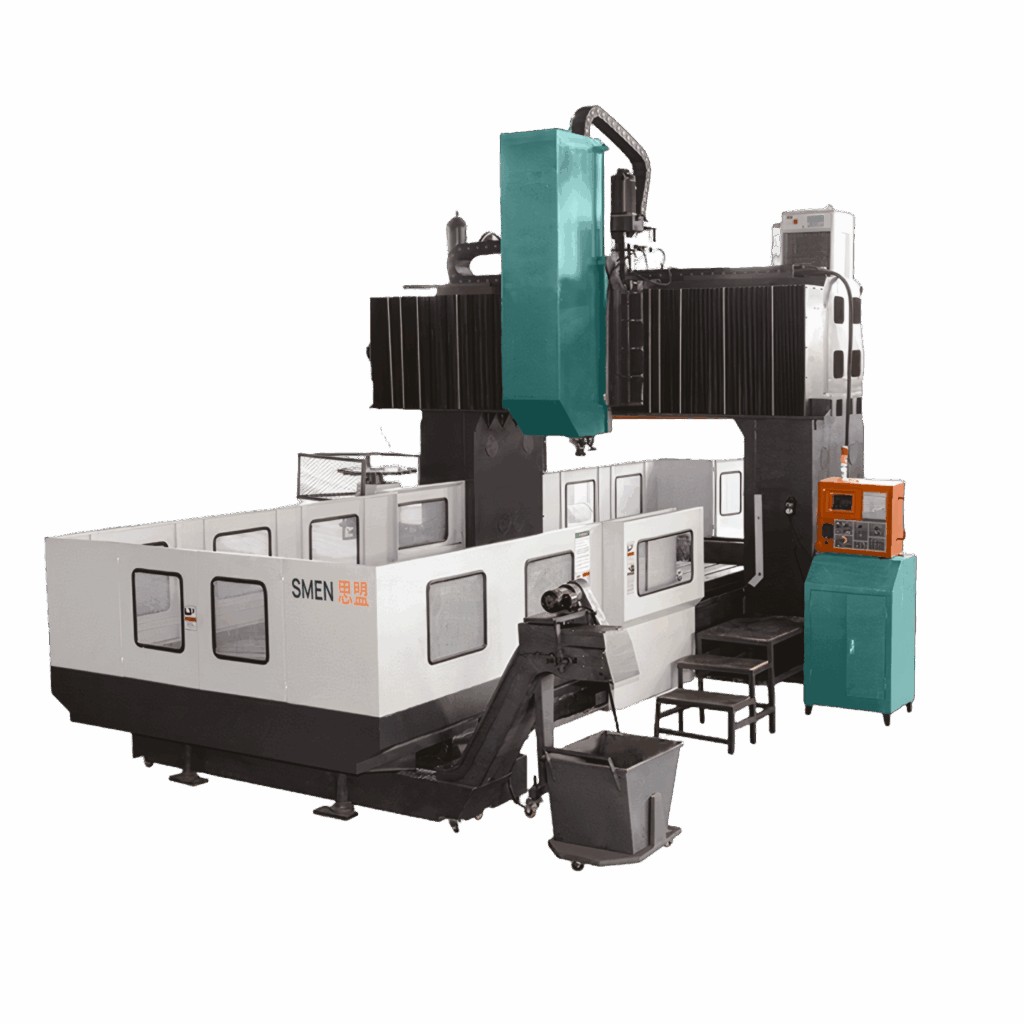

CNC GANTRY MACHINING CENTER XH2308A / XK2308A
Table size:800x1600mm
Column spacing:1200mm
Max. Table load:3T
Engine power:15/18.5 kW
Description
Тех. характеристики
| Model |
XH2308A / XK2308A |
|---|---|
| Table size |
800 × 1600 mm |
| Max. workpiece weight |
3 t |
| Distance between columns |
1200 mm |
| Number/width/distance between T-slots |
5–22 × 140 mm |
| Desktop progress |
1700 mm |
| Spindle stroke |
1200 mm |
| Distance from spindle to table |
110–760 mm |
| Spindle rotation speed |
6000 mm/min |
| Feed Rate X/Y/Z (Working Feed) |
5~5000 mm/min |
| Main drive power |
15 kW , 18 , 5 kW |
| Machine weight |
12 , 5 t |
| Type |
Portal cnc Machining Centers |
