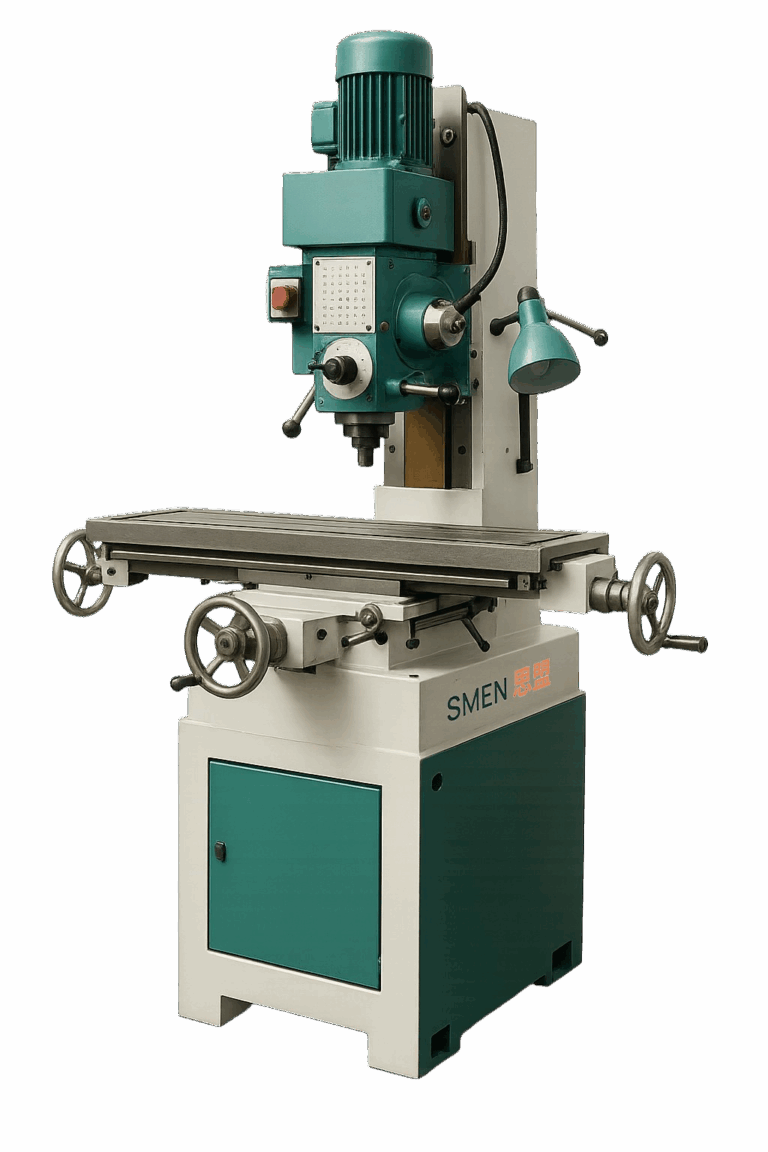

ZX50C DRILLING AND MILLING MACHINES

The diameter of the vert.milling operations:32mm

End milling diameter:120mm

Table size:1120x250mm

Engine power:1.5kW

Description

The machine is designed for vertical milling, drilling and boring. The longitudinal movement of the desktop is carried out using

mechanical feed. The milling head can be rotated 90° vertically to the right and left.

Due to its versatile design and wide functionality, the machine is suitable for performing various technological operations: processing of flat and

inclined surfaces, milling of gears, multiline shafts and arc grooves.

The machine is ideally suited for repair and production needs in enterprises of various profiles, especially in the manufacture of tools.,

fixtures, molds, and other accessories.

Тех. характеристики

Model	ZX50C
The diameter of the vert.milling operations	32 mm
End milling diameter	120 mm
钻孔直径	50 мм
Thread cutting capacity	М16
工作台尺寸	1120 × 250 mm
Longitudinal stroke (on the X-axis)	500 mm
Transverse stroke (on the Y-axis)	310 mm
Max. table swivel angle	45°
Spindle stroke	120 mm
Distance from spindle to table	0–570 mm
Distance from spindle axis to column	350 mm
Spindle cone	МТ4
Vertical milling spindle speeds	115-1750 rpm (8 steps)
Main drive power	1 , 5 кВт
Dimensions	1520 × 1120 × 1850 mm
机器重量	950 kg
Type	DRILLING AND MILLING MACHINES
