Spindle speed:100-8000 rpm
Table size:2200x820mm
max. Table load:960kg
Engine power:11 kW
The equipment is equipped with the following standard accessories:
Cooling system
The pneumatic system
Lighting system
Adjustable blocks
Automatic lubrication system
Partial protective cover (semi–splash
guard)
Stainless steel protective plate
FANUC 0i–mate control system
Optionally, they can be installed:
A tool shop without a lever
A tool shop with a lever
Heat exchanger
The fourth axis
Conditioner
Central coolant supply through the spindle
Air blowing gun
| Model |
XK(H)2285 |
|---|---|
| 工作台尺寸 |
2200 × 820 mm |
| Number/width/distance between T-slots |
5 – 22 × 135 mm |
| Max. workpiece weight |
960 kg |
| Distance from spindle to table |
200–900 mm |
| Distance from spindle axis to column |
830 mm |
| Spindle cone |
BT40 |
| Spindle rotation speed |
100-8000 rpm |
| Drive |
Synchronous belt |
| Main drive power |
11 kW , 15 kW |
| Feed speed X/Y/Z (rapid feed) |
15/15/12 mm/min |
| Working feed by axes |
8 мм/мин |
| 刀具库容量 |
BT40–16/24 |
| Max. tool length |
300 mm |
| Max. tool weight |
7 , 5 kg |
| Positioning accuracy |
±0.01 mm |
| Repositioning repeatability |
±0.008 mm |
| Dimensions |
|
| 机器重量 |
7.5/8 t |
| Type |

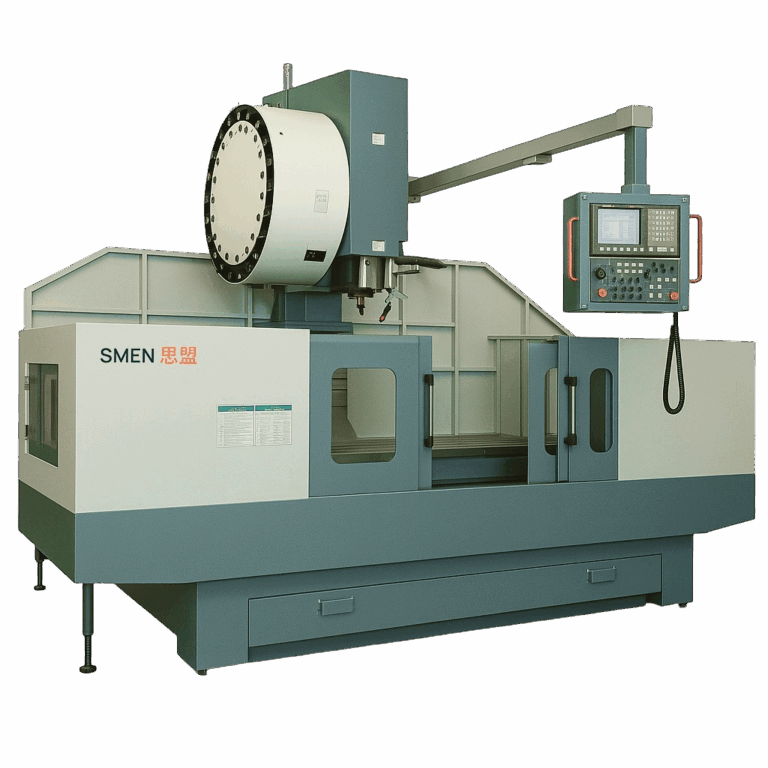

VERTICAL MILLING THREE-AXIS MACHINING CENTERS WITH CNC |
