Главная страница » Catalogue » Q1330 PIPE THREADING MACHINES
PIPE THREADING MACHINES Q1327
Back to products

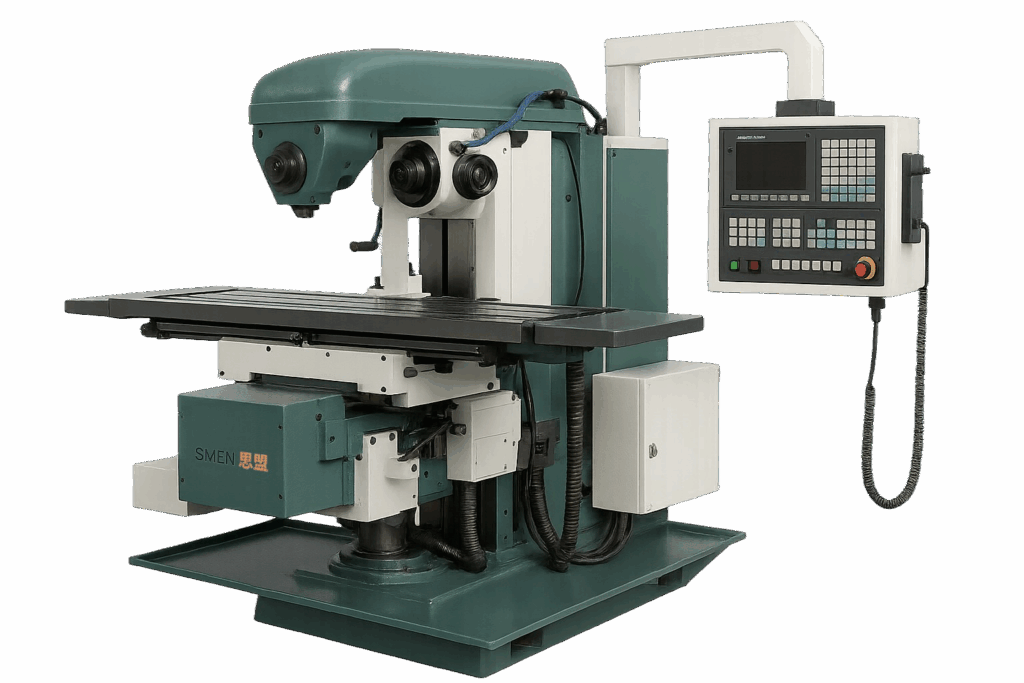

HORIZONTAL CANTILEVER CNC MILLING MACHINES XK6132

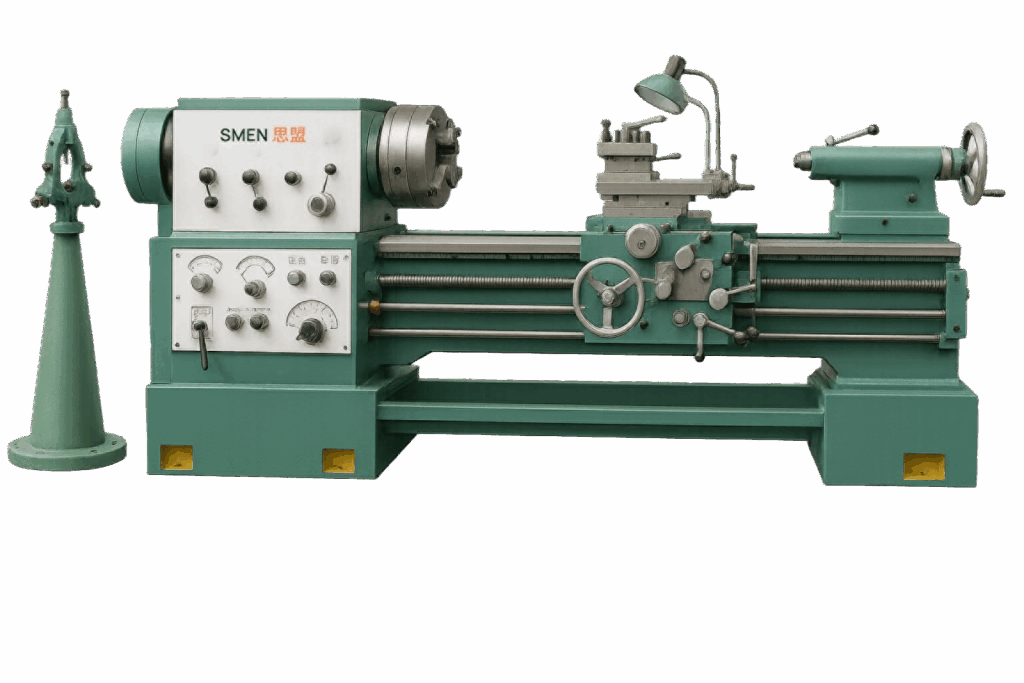

Q1330 PIPE THREADING MACHINES

Max Ø mod. above the bed:800mm

Max Ø mod. above the caliper:480mm

the distance between the centers:1500mm

Engine power:15 kW

Q1313 Q1319 Q1322 Q1325 Q1327 Q1330
Compare
SKU: CW61160B-1-1-1-1-1-1 Categories: Lathes, Metalworking machines Brand: SMEN
Share:
  • Description
  • Тех. характеристики
  • Ответы на вопросы
  • Delivery and payment
Description

The Q13 series machines are professional equipment for pipe threading. They are designed for processing internal and external threads, including both metric and inch.

In addition, the machines are capable of performing a wide range of turning operations: processing internal and external cylindrical surfaces, conical surfaces, ends and other rotating

elements, similar to universal CNC lathes. The equipment in this series is widely used in mechanical engineering, the petroleum and chemical industries, and the mining sector.,

geological exploration, as well as in urban water supply and sanitation systems.



Тех. характеристики
Model

Q1330

床身上方的加工直径

800 mm

滑块上方的加工直径

480 mm

Max. workpiece length

1500 mm

Bed width

550 mm

Main drive power

15 kW

主轴孔

305 mm

Number of spindle rotation stages

VF2 steps 20-300

Cross travel (Z-axis)

40 / 0.1–3 rpm

Longitudinal stroke (on the X-axis)

40 / 0.05–1.5 rpm

Rapid carriage traverse speed

3740 mm/min

Rapid slide feed speed

1870 mm/min

步数,公制螺纹范围

52 / 1–224 mm

步数,英寸螺纹范围

40 / 2–28 inch

Cross slide travel

520 mm

Max. tool holder travel

300 mm

Tailstock pinole stroke

300 mm

Tailstock taper

MT#6 , 140 mm

Chuck type

Ф630 4-cam manual

Dimensions

5000x2100x1600 mm

机器重量

4 , 3 t

Type

PIPE THREADING MACHINES
