The machine has high rigidity and a wide range of speeds,
is suitable for heavy processing and meets a variety of requirements for
production operations.

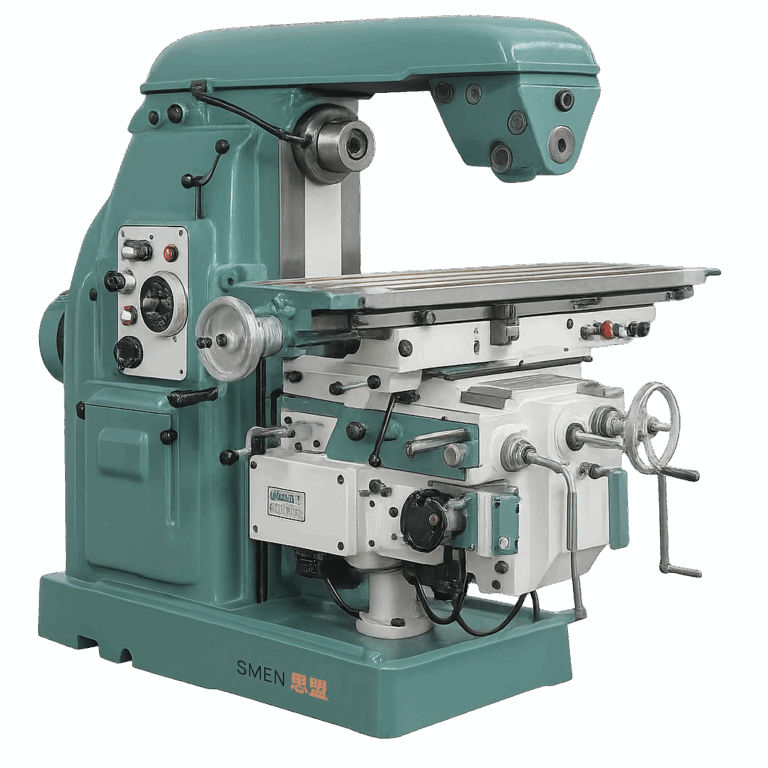

HORIZONTAL CANTILEVER CNC MILLING MACHINES X5032
Spindle speed:30-1500 rpm
Table size:13250x320mm
max. load on the table:500kg
Engine power:7.5kW
Description
Тех. характеристики
| Model |
X5032 |
|---|---|
| Table stroke (X, Y, Z) |
23.5–1180 / 15-786 / 8-394 mm/min |
| Max. workpiece weight |
500 kg |
| Table size |
320 × 1325 mm |
| Number/width/distance between T-slots |
3-18-70 |
| Feed Rate X/Y/Z (Working Feed) |
680/240/330 (auto) , 700/255/350 (manual) |
| Feed speed X/Y/Z (rapid feed) |
2300 / 1540 / 770 mm/min |
| Distance from spindle to table |
60-410 mm |
| Distance from spindle axis to column |
350 mm |
| Spindle cone |
ISO50 (7:24) |
| Spindle through-hole |
29 mm |
| Number of spindle rotation stages |
30–1500 (18 steps) |
| Milling head swivel angle |
±45° |
| Feed motor power |
1 , 5 kW |
| Feed motor speed |
1400 rpm , 1430 rpm |
| Main drive power |
7.5 kW |
| Dimensions |
2294 × 1780 × 2150 mm |
| Machine weight |
2850 kg |
