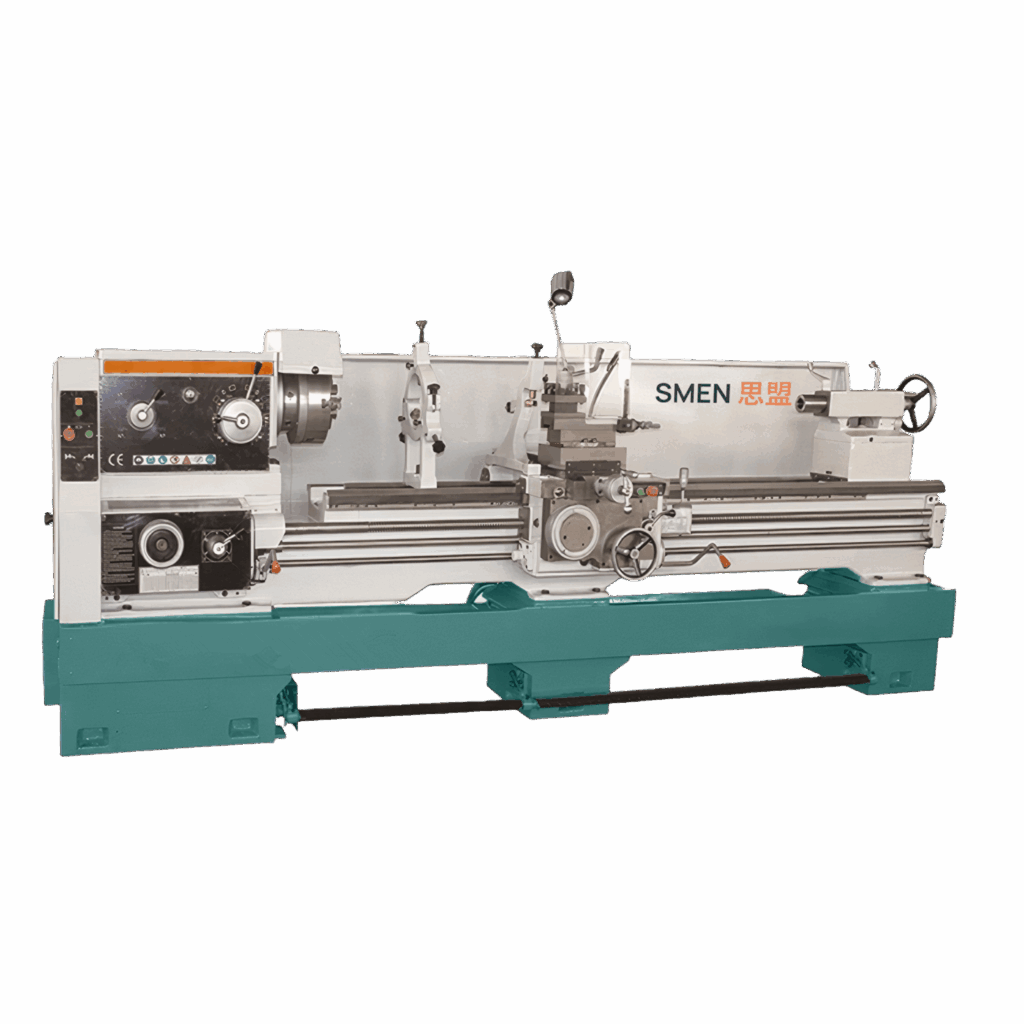

HEAVY UNIVERSAL LATHES CW6194B/CW6294B
Max Ø mod. above the bed:940mm
Max Ø mod. above the caliper:660mm
the distance between the centers:750-10000mm
Engine power:11 kW
Description
Тех. характеристики
| Model |
CW6194B/CW6294B |
|---|---|
| Machining diameter above the bed |
940 mm |
| Diameter of the treatment above the caliper |
660 mm |
| Max. workpiece length |
10000 mm , 750 mm |
| Max. machining length |
600 mm , 9850 mm |
| Max. machining diameter in recess |
(CW6294B) , 1140 mm |
| Effective slot width |
(CW6294B) , 300 mm |
| Spindle nose |
С11 |
| Spindle through-hole |
100 mm |
| Spindle cone |
1:20 , 120 |
| Spindle rotation speed |
6–800 rpm |
| Number of spindle rotation stages |
18 |
| Feed speed on X/Z axes |
64;01-24.32 rpm |
| Longitudinal/cross feed ratio |
1.0/2.0 |
| Lead screw pitch |
12 mm |
| Number of steps, metric thread range |
1-240 (50 species) |
| Number of steps, range of inch threads |
26;14–1 |
| Number of steps, range of modular threads |
0.5-120 (53 species) |
| Number of steps, diameter thread range |
24; 28–1 |
| Rapid carriage traverse speed |
4 rpm |
| Max. lower slide travel |
570 mm |
| Max. upper slide travel |
200 mm |
| Incisor section |
32×32 mm |
| Tailstock pinole diameter |
100 mm |
| Tailstock pinole stroke |
250 mm |
| Tailstock taper |
МТ5 |
| Main drive power |
11 kW |
